HYDRO PAGE
Flows around a CYLINDER
Resolution are given in the Lenght Unit Scale
i.e. the Radius=1 of the sphere ;
Initial time Tinit=0
Final time Tfin depends on the factor f related
to the crossing time of the sphere.
Mach=1.2 Flow

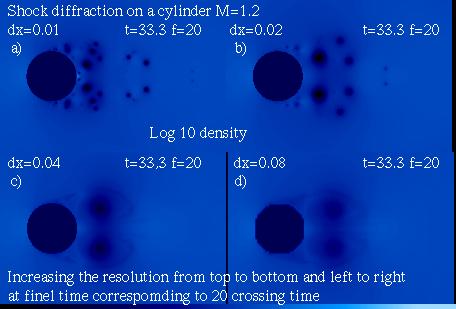

Log10 Density left up dx=0.01 right up dx=0.02
left bottom dx=0.04 right bottom dx=0.08

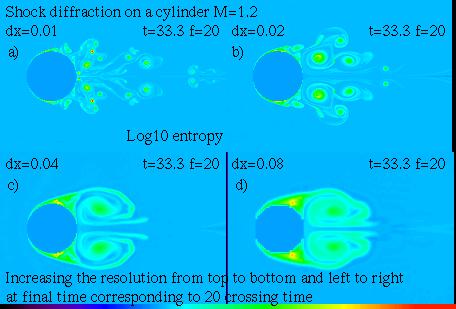

Log10 Entropy left up dx=0.01 right up dx=0.02
left bottom dx=0.04 right bottom dx=0.08
Mach=1.5 Flow

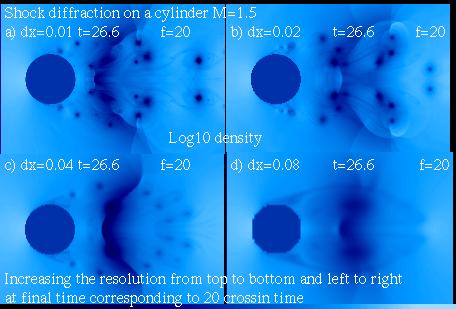

Log10 Density left up dx=0.01 right up dx=0.02
left bottom dx=0.04 right bottom dx=0.08

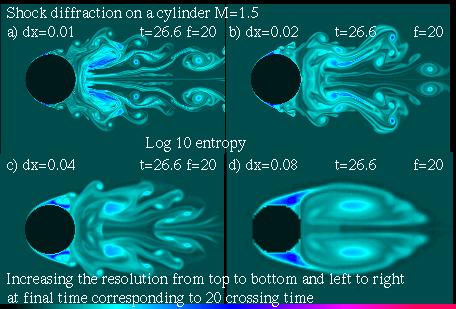

Log10 Entropy left up dx=0.01 right up dx=0.02
left bottom dx=0.04 right bottom dx=0.08
Mach=2.0 Flow

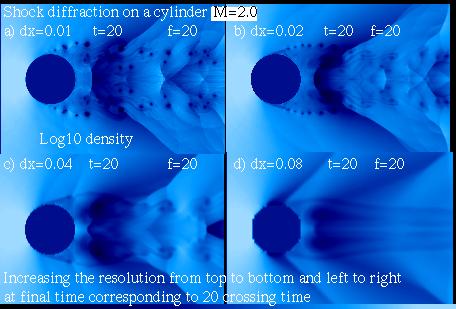

Log10 Density left up dx=0.01 right up dx=0.02
left bottom dx=0.04 right bottom dx=0.08

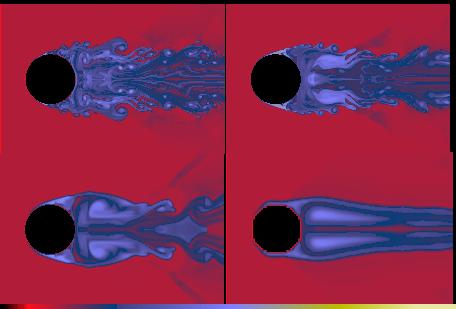

Log10 Entropy left up dx=0.01 right up dx=0.02
left bottom dx=0.04 right bottom dx=0.08
