HYDRO PAGE
Flows around a SPHERE
Resolution are given in the Lenght Unit Scale
i.e. the Radius=1 of the sphere ;
Initial time Tinit=0
Final time Tfin depends on the factor f related
to the crossing time of the sphere.
Mach=1.2 Flow

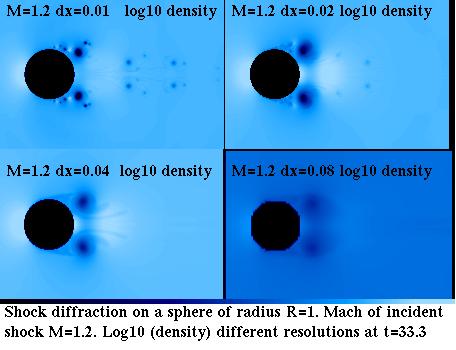

Log10 Density left up dx=0.01 right up dx=0.02
left bottom dx=0.04 right bottom dx=0.08

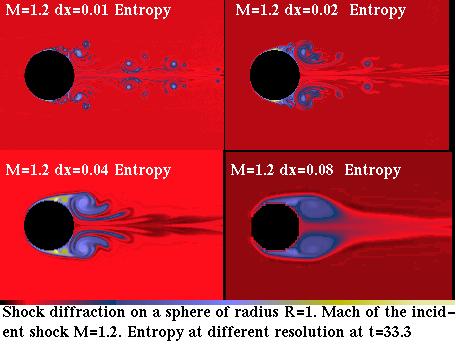

Log10 Entropy left up dx=0.01 right up dx=0.02
left bottom dx=0.04 right bottom dx=0.08
Mach=1.5 Flow

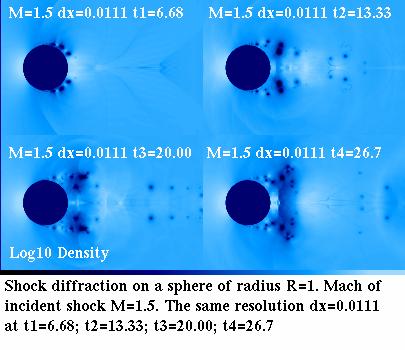

Log10 Density dx= 0.0111 at different times

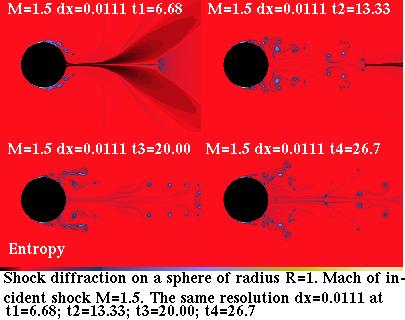

Log10 Entropy dx= 0.0111 at different times
Mach=2.0 Flow

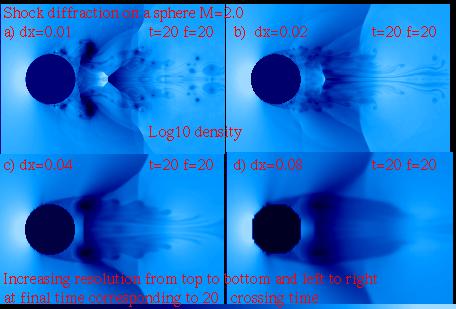

Log10 Density left up dx=0.01 right up dx=0.02
left bottom dx=0.04 right bottom dx=0.08

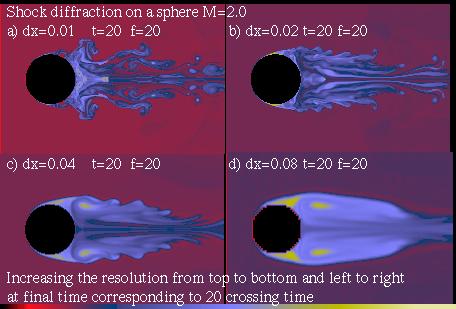

Log10 Entropy left up dx=0.01 right up dx=0.02
left bottom dx=0.04 right bottom dx=0.08

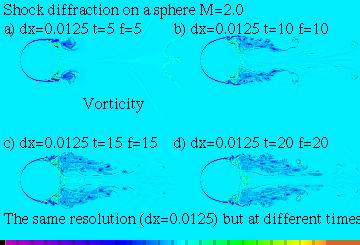

Vorticity dx= 0.0125 at different times
Mach=3.0 Flow

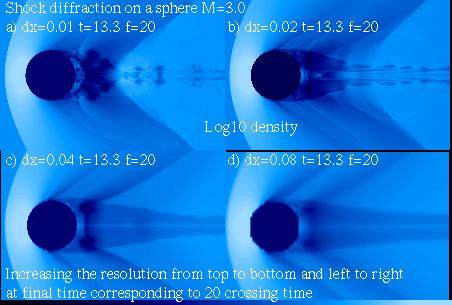

Log10 Density left up dx=0.01 right up dx=0.02
left bottom dx=0.04 right bottom dx=0.08

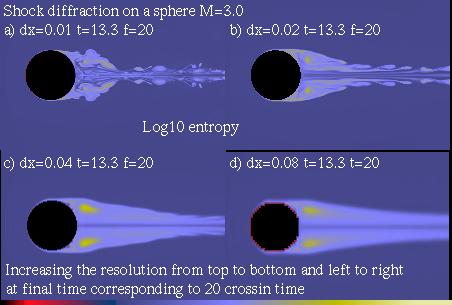

Log10 Entropy left up dx=0.01 right up dx=0.02
left bottom dx=0.04 right bottom dx=0.08
Vorticity dx= 0.01 at different times
Mach=4.0 Flow

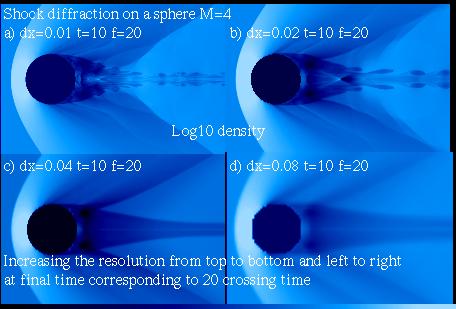

Log10 Density left up dx=0.01 right up dx=0.02
left bottom dx=0.04 right bottom dx=0.08
