Sensore

Marconi ccd4710B  13.3mm X 13.3mm

Pixel size

13µm X 13µm

Full Frame size

1055 px X 1026 px

Scala

0.79 arcsec/px

FOV

13.8 arcsec X 13.5 arcsec

FWC

100000 e‾

Conversione A/D

16 bit (65500 greylevels) UNSIGNED

Read Out Speed

64 Kpx/sec (17 sec bin 1x1)

Range Dinamico

83.9 db @ -25 ºC

RON

14.1 e‾/px @ -20 ºC

Gain

1.13 ± 0.073 e‾/ADU

Risposta spettrale

da 400 nm a 1100 nm

Linearità

< 0.9 %

Dark Current

0.6 e‾/sec @ -20 ºC

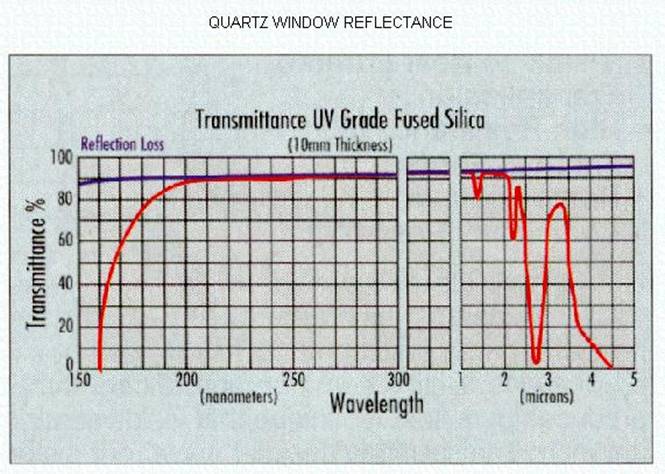

Finestra Ottica

Quarzo
